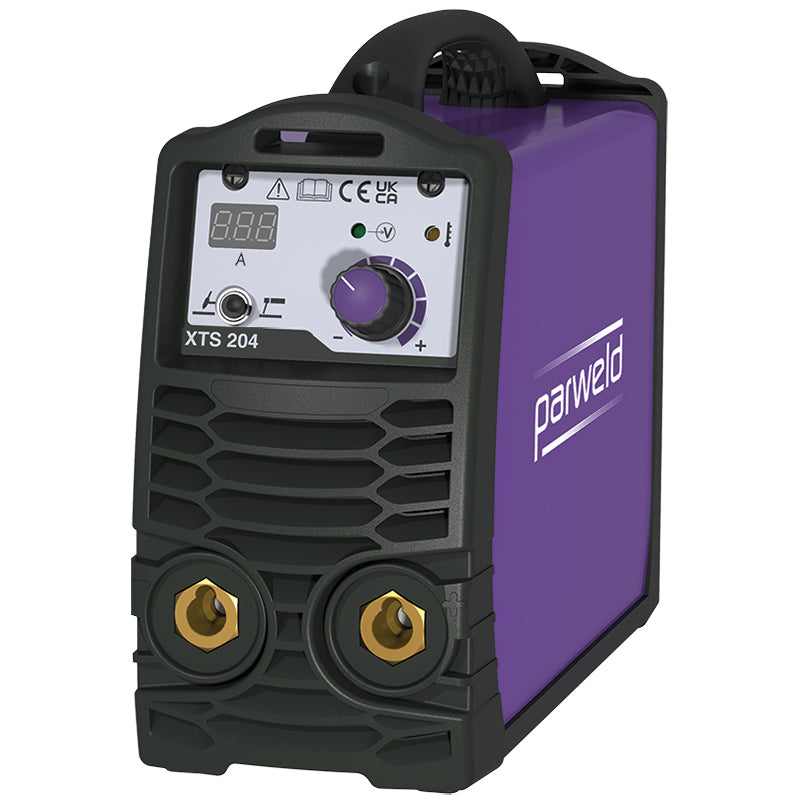

Parweld XTS 204 MMA Welder 230V
Parweld XTS 204 MMA Welder 230V
Compact 230V MMA inverter welder with 10-200A output, 200A at 25% duty cycle and Lift TIG capability with an optional torch. Supplied with 3m electrode holder and 3m earth lead, with hot start, arc force and anti-sticking functions for site and workshop welding.
3–5 working day deliveryAvailable to order
Free UK delivery over £75 ex VATStandard mainland delivery terms apply
Straightforward returnsRead our returns policy
UK warranty supportHelp from our experienced team
Genuine means genuine
Original parts. Proper fit. No unbranded substitutes.
When a listing carries one of these manufacturer names, we supply the genuine branded product—not an unbranded lookalike or inferior copy. That gives professional welders confidence in compatibility, rated performance and product traceability.
Shop genuine MIG torches & parts- ABICOR BINZEL
- Miller
- Migatronic
- Bernard
- Tregaskiss
Trade-focused supplyProfessional equipment, parts and consumables.
Clear availabilityStock and expected lead times made clear.
Compatible accessories & useful extras
Continue browsing
Recently viewed
Essential specifications
Key facts at a glance
The principal information needed to compare this product quickly. Full technical data is shown below.
- Processes
- TIG, MMA / ARC
- Input voltage
- 230V
- Maximum output
- 200A
- Duty cycle
- 200A @ 25%
Product overview
Product information
Compact 230V MMA inverter welder with 10-200A output, 200A at 25% duty cycle and Lift TIG capability with an optional torch. Supplied with 3m electrode holder and 3m earth lead, with hot start, arc force and anti-sticking functions for site and workshop welding.
Compact 230V MMA inverter welder with 10-200A output, 200A at 25% duty cycle and Lift TIG capability with an optional torch. Supplied with 3m electrode holder and 3m earth lead, with hot start, arc force and anti-sticking functions for site and workshop welding.
Technical data
Technical specifications
| Maximum output | 200A |
|---|---|
| Connection type | 35-50 Dix |
| Current range | MMA 10-200A @ 230V; TIG 10-200A @ 230V |
| Dimensions (L × W × H) | 285 x 120 x 250mm |
| Duty cycle | 200A @ 25% |
| Features | Hot start, arc force, anti-sticking, digital amperage display, over voltage protection, over current protection |
| Generator requirement | 13kVA; Generator requires AVC |
| Included in box | Electrode holder with 3m cable, 3m earth lead |
| Input current effective | 20A |
| Input supply details | 230V 1 phase |
| Kva rating | 10.2kVA |
| Max electrode size | 4.0mm |
| Minimum fuse rating | 32A |
| Minimum order quantity | 1 |
| Open circuit voltage | 50V |
| Protection class | IP23S |
| Suitable for | Steel and stainless steel for Lift TIG welding |
| Input voltage | 230V |
| Weight | 4.8kg |
| Welding processes | TIG, MMA / ARC |
| Welding process details | MMA, Lift TIG |
