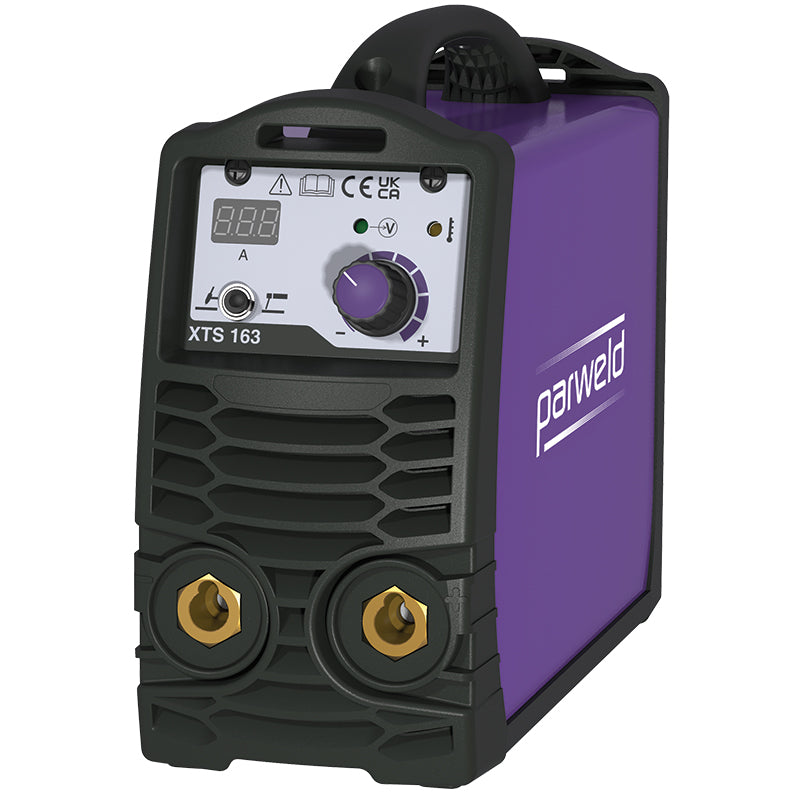

Parweld XTS 163 MMA Inverter Welder 230V
Parweld XTS 163 MMA Inverter Welder 230V
Compact 230V MMA inverter welder with 5–160A DC output, digital amperage display, Lift TIG capability and 35–50 Dinse connections. Supplied with 3m electrode holder cable and 3m earth lead.
3–5 working day deliveryAvailable to order
Free UK delivery over £75 ex VATStandard mainland delivery terms apply
Straightforward returnsRead our returns policy
UK warranty supportHelp from our experienced team
Genuine means genuine
Original parts. Proper fit. No unbranded substitutes.
When a listing carries one of these manufacturer names, we supply the genuine branded product—not an unbranded lookalike or inferior copy. That gives professional welders confidence in compatibility, rated performance and product traceability.
Shop genuine MIG torches & parts- ABICOR BINZEL
- Miller
- Migatronic
- Bernard
- Tregaskiss
Trade-focused supplyProfessional equipment, parts and consumables.
Clear availabilityStock and expected lead times made clear.
Compatible accessories & useful extras
Continue browsing
Recently viewed
Essential specifications
Key facts at a glance
The principal information needed to compare this product quickly. Full technical data is shown below.
- Processes
- TIG, MMA / ARC
- Input voltage
- 230V
- Maximum output
- 160A
- Duty cycle
- 160A @ 25%
Product overview
Product information
Compact 230V MMA inverter welder with 5–160A DC output, digital amperage display, Lift TIG capability and 35–50 Dinse connections. Supplied with 3m electrode holder cable and 3m earth lead.
Compact 230V MMA inverter welder with 5–160A DC output, digital amperage display, Lift TIG capability and 35–50 Dinse connections. Supplied with 3m electrode holder cable and 3m earth lead.
Technical data
Technical specifications
| Maximum output | 160A |
|---|---|
| Connection type | 35-50 Dinse |
| Current range | MMA 5-160A @ 230V; TIG 5-160A @ 230V |
| Dimensions (L × W × H) | 285 x 120 x 250mm |
| Display | Digital amperage display |
| Duty cycle | 160A @ 25% |
| Features | Hot Start, Arc Force, anti sticking, over voltage protection and over current protection |
| Generator requirement | 10kVA; AVC required |
| Included in box | Electrode holder cable 3m and earth lead 3m |
| Input current effective | 15.9A |
| Input supply details | 230V single phase |
| Kva rating | 8kVA |
| Manufacturer part number | XTS163 |
| Max electrode size | 3.2mm |
| Minimum fuse rating | 16A |
| Minimum order quantity | 1 |
| Open circuit voltage | 45V |
| Protection class | IP23S |
| Standards | ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS |
| Input voltage | 230V |
| Weight | 4.7kg |
| Welding processes | TIG, MMA / ARC |
| Welding process details | MMA and Lift TIG |
