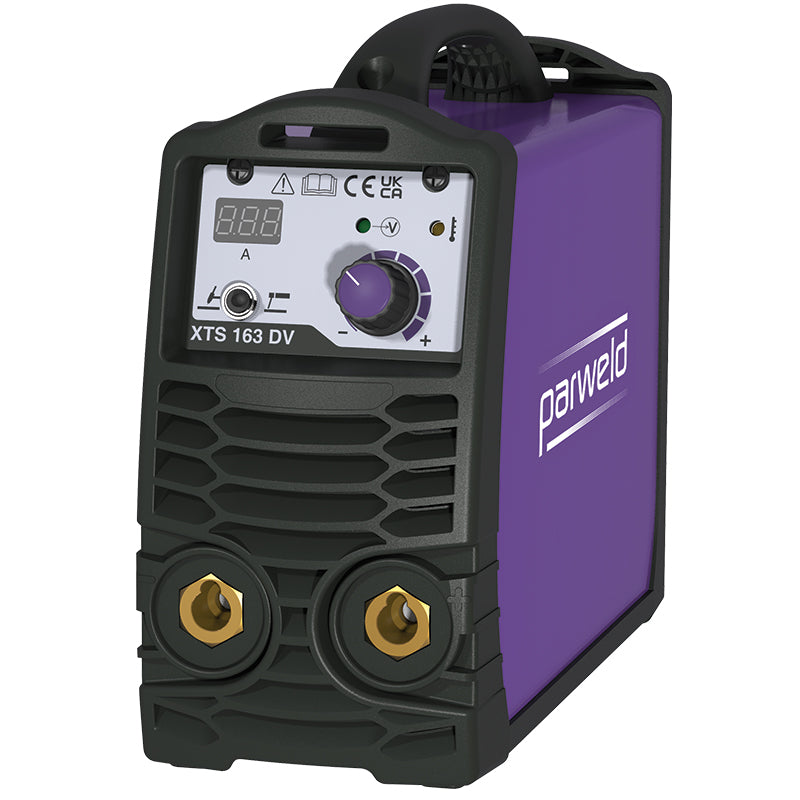

Parweld XTS 163DV Dual Voltage MMA Welder 110/230V
Parweld XTS 163DV Dual Voltage MMA Welder 110/230V
Compact dual-voltage MMA inverter for 110V or 230V single-phase supplies. The Parweld XTS 163DV delivers up to 160A on 230V, supports Lift TIG with an optional torch, and is supplied with 3m electrode holder and earth leads.
3–5 working day deliveryAvailable to order
Free UK delivery over £75 ex VATStandard mainland delivery terms apply
Straightforward returnsRead our returns policy
UK warranty supportHelp from our experienced team
Genuine means genuine
Original parts. Proper fit. No unbranded substitutes.
When a listing carries one of these manufacturer names, we supply the genuine branded product—not an unbranded lookalike or inferior copy. That gives professional welders confidence in compatibility, rated performance and product traceability.
Shop genuine MIG torches & parts- ABICOR BINZEL
- Miller
- Migatronic
- Bernard
- Tregaskiss
Trade-focused supplyProfessional equipment, parts and consumables.
Clear availabilityStock and expected lead times made clear.
Compatible accessories & useful extras
Continue browsing
Recently viewed
Essential specifications
Key facts at a glance
The principal information needed to compare this product quickly. Full technical data is shown below.
- Processes
- TIG, MMA / ARC
- Input voltage
- 110V / 230V
- Maximum output
- 160A
- Duty cycle
- 160A at 25% (230V)
Product overview
Product information
Compact dual-voltage MMA inverter for 110V or 230V single-phase supplies. The Parweld XTS 163DV delivers up to 160A on 230V, supports Lift TIG with an optional torch, and is supplied with 3m electrode holder and earth leads.
Compact dual-voltage MMA inverter for 110V or 230V single-phase supplies. The Parweld XTS 163DV delivers up to 160A on 230V, supports Lift TIG with an optional torch, and is supplied with 3m electrode holder and earth leads.
Technical data
Technical specifications
| Maximum output | 160A |
|---|---|
| Anti stick | Yes |
| Arc force | Yes |
| Connection type | 35-50 Dinse |
| Current range | MMA 5-140A @ 110V; MMA 5-160A @ 230V; TIG 5-140A @ 110V; TIG 5-160A @ 230V |
| Dimensions (L × W × H) | 285 x 120 x 250mm |
| Duty cycle | 160A at 25% (230V) |
| Electrode mode | Basic / Rutile |
| Generator friendly | Yes |
| Generator requirement | 10 kVA |
| Hot start | Yes |
| Included in box | Electrode holder with 3m cable and 3m earth lead |
| Input current effective | 15.5A at 230V; 17A at 110V |
| Input supply details | 110/230V single phase |
| Kva rating | 8 kVA |
| Max electrode size | 3.2mm |
| Minimum fuse rating | 32A (110V) / 16A (230V) |
| Minimum order quantity | 1 |
| Model | XTS 163DV |
| Open circuit voltage | 50V |
| Protection class | IP23S |
| Smart input switching | Yes |
| Standards | ISO/IEC 60974-1; ISO/IEC 60974-6; RoHS compliant |
| Input voltage | 110V / 230V |
| Weight | 4.8kg |
| Welding processes | TIG, MMA / ARC |
| Welding process details | MMA / Lift TIG |
