Parweld XTM 201Di-P1 Multi-Process MIG Welder 110/230V
Parweld XTM 201Di-P1 Multi-Process MIG Welder 110/230V

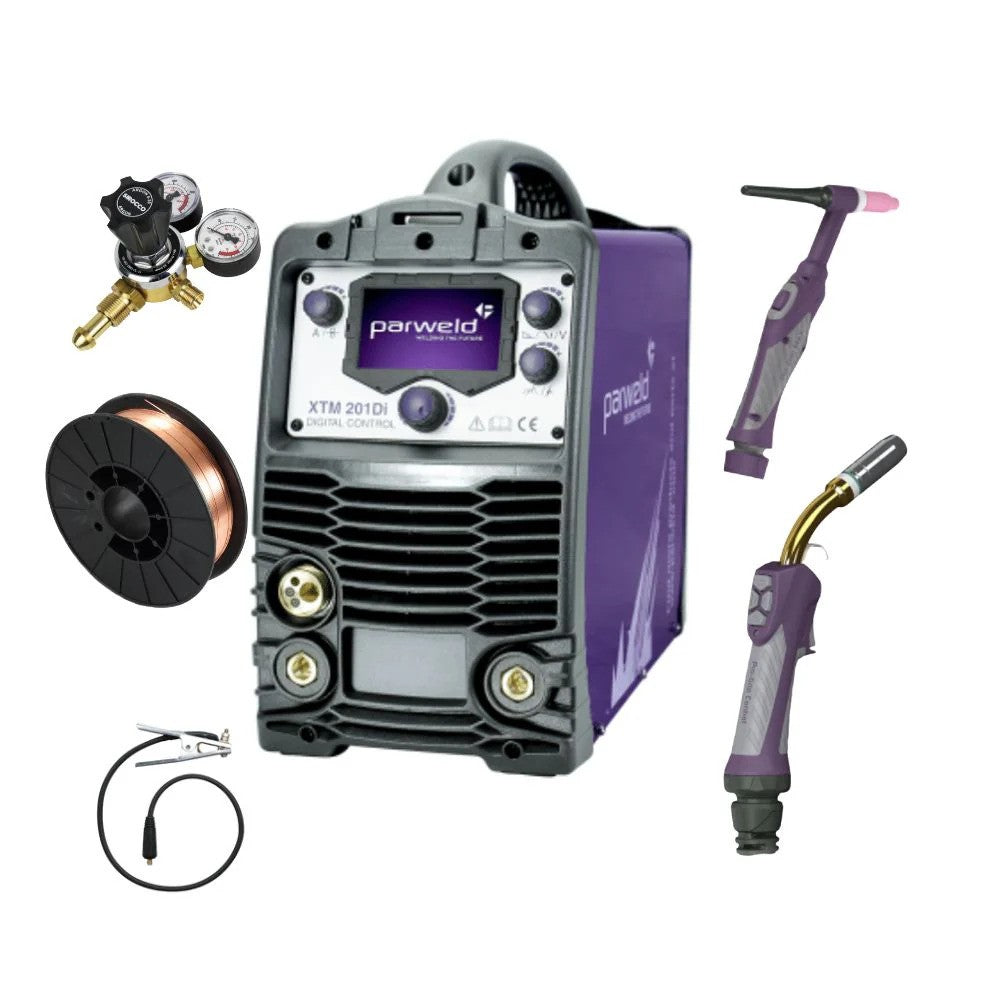

Compact dual-voltage multi-process inverter welder for MIG, Lift TIG and MMA welding. The XTM 201Di-P1 includes a remote-control MIG torch, MIG wire and regulator package, with rapid synergic set-up, support for 1kg and 5kg wire spools, and a portable 200A chassis.
3–5 working day deliveryAvailable to order
Free UK delivery over £75 ex VATStandard mainland delivery terms apply
Straightforward returnsRead our returns policy
UK warranty supportHelp from our experienced team
Genuine means genuine
Original parts. Proper fit. No unbranded substitutes.
When a listing carries one of these manufacturer names, we supply the genuine branded product—not an unbranded lookalike or inferior copy. That gives professional welders confidence in compatibility, rated performance and product traceability.
Shop genuine MIG torches & parts- ABICOR BINZEL
- Miller
- Migatronic
- Bernard
- Tregaskiss
Trade-focused supplyProfessional equipment, parts and consumables.
Clear availabilityStock and expected lead times made clear.
Compatible accessories & useful extras
Continue browsing
Recently viewed
Essential specifications
Key facts at a glance
The principal information needed to compare this product quickly. Full technical data is shown below.
- Processes
- MIG / MAG, TIG, MMA / ARC
- Input voltage
- 110V / 230V
- Maximum output
- 140A (110V) / 200A (230V)
- Duty cycle
- 200A @ 25%
Product overview
Product information
Compact dual-voltage multi-process inverter welder for MIG, Lift TIG and MMA welding. The XTM 201Di-P1 includes a remote-control MIG torch, MIG wire and regulator package, with rapid synergic set-up, support for 1kg and 5kg wire spools, and a portable 200A chassis.
Compact dual-voltage multi-process inverter welder for MIG, Lift TIG and MMA welding. The XTM 201Di-P1 includes a remote-control MIG torch, MIG wire and regulator package, with rapid synergic set-up, support for 1kg and 5kg wire spools, and a portable 200A chassis.
Technical data
Technical specifications
| Maximum output | 140A (110V) / 200A (230V) |
|---|---|
| Current range | MIG 30-140A @ 110V; MIG 30-200A @ 230V; TIG 10-140A @ 110V; TIG 10-200A @ 230V; MMA 10-140A @ 110V; MMA 10-200A @ 230V |
| Dimensions (L × W × H) | 490 x 220 x 430mm |
| Duty cycle | 200A @ 25% |
| Generator requirement | 10 KVA |
| Included in box | Remote control MIG torch, MIG wire and regulator package |
| Input current effective | 32A @ 110V / 26A @ 230V |
| Input supply details | 110V / 230V, single phase, dual voltage smart switching; MIG 14.5-24V; TIG 10.4-18V; MMA 20.4-28V |
| Kva rating | 7.8 |
| Minimum fuse rating | 32A @ 110V / 16A @ 230V |
| Minimum order quantity | 1 |
| Min current | 30A (MIG), 10A (TIG) |
| Model | XTM 201Di-P1 |
| Protection class | IP23S |
| Standards | ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS |
| Input voltage | 110V / 230V |
| Weight | 17.5kg |
| Welding processes | MIG / MAG, TIG, MMA / ARC |
| Welding process details | MIG / Lift TIG / MMA |
| Wire diameter | 0.6-1.0mm |
| Wire feeder | 2 roll drive |
| Wire feed speed | 3.5-21m/min |
| Wire spool size | 100mm (1kg) and 200mm (5kg) |
