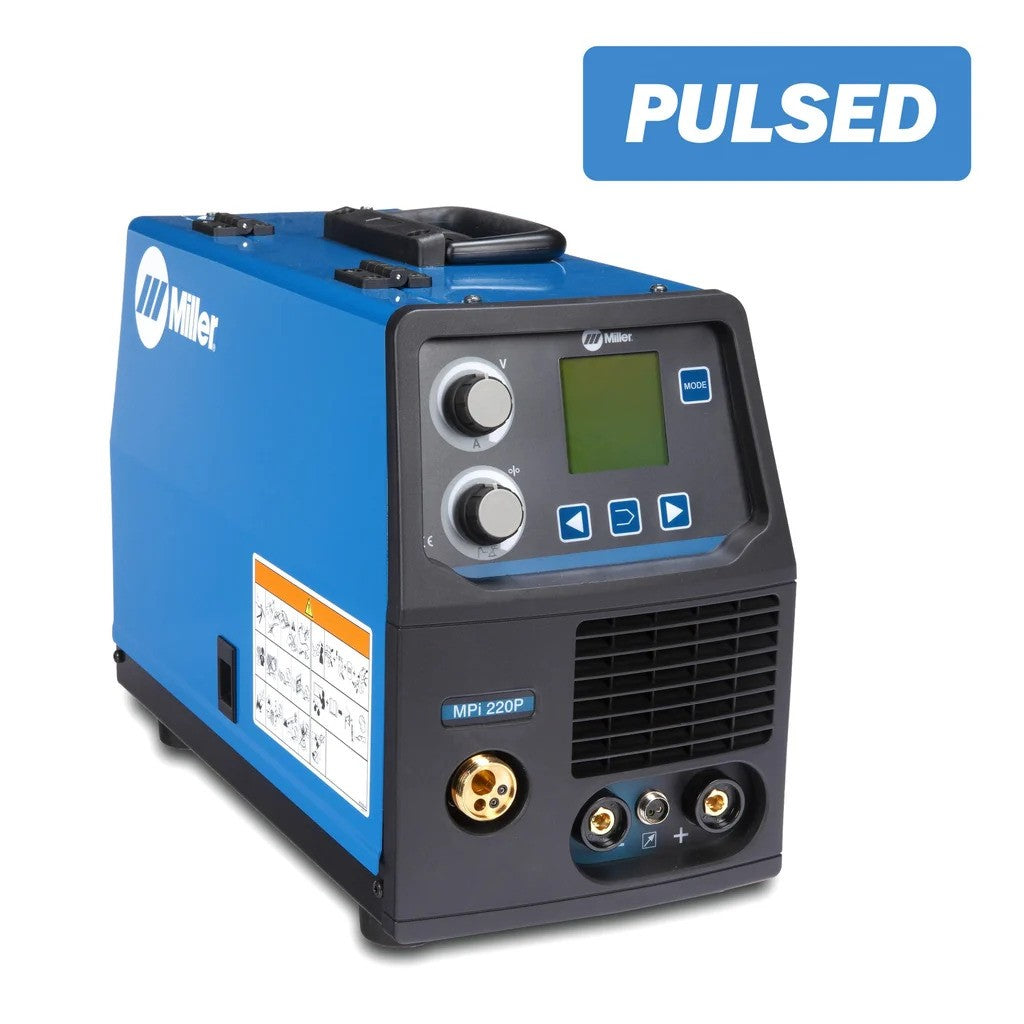

Miller MPi 220P Multiprocess Pulse MIG Welder 230V
Miller MPi 220P Multiprocess Pulse MIG Welder 230V
Compact 230V single-phase multiprocess welder for MIG/MAG, pulsed MIG, flux-cored, MMA and TIG welding. The Miller MPi 220P combines portable size with synergic control, a large graphical display and support for steel, stainless steel and aluminium. Rated up to 200A with a 35% duty cycle at 180A for MIG, and supplied with 0.8/1.0mm V-groove drive rolls, work clamp and power cord.
3–5 working day deliveryAvailable to order
Free UK delivery over £75 ex VATStandard mainland delivery terms apply
Straightforward returnsRead our returns policy
UK warranty supportHelp from our experienced team
Genuine means genuine
Original parts. Proper fit. No unbranded substitutes.
When a listing carries one of these manufacturer names, we supply the genuine branded product—not an unbranded lookalike or inferior copy. That gives professional welders confidence in compatibility, rated performance and product traceability.
Shop genuine MIG torches & parts- ABICOR BINZEL
- Miller
- Migatronic
- Bernard
- Tregaskiss
Trade-focused supplyProfessional equipment, parts and consumables.
Clear availabilityStock and expected lead times made clear.
Compatible accessories & useful extras
Continue browsing
Recently viewed
Essential specifications
Key facts at a glance
The principal information needed to compare this product quickly. Full technical data is shown below.
- Processes
- MIG / MAG, TIG, MMA / ARC
- Input voltage
- 230V
- Maximum output
- 200A
Product overview
Product information
Compact 230V single-phase multiprocess welder for MIG/MAG, pulsed MIG, flux-cored, MMA and TIG welding. The Miller MPi 220P combines portable size with synergic control, a large graphical display and support for steel, stainless steel and aluminium. Rated up to 200A with a 35% duty cycle at 180A for MIG, and supplied with 0.8/1.0mm V-groove drive rolls, work clamp and power cord.
Compact 230V single-phase multiprocess welder for MIG/MAG, pulsed MIG, flux-cored, MMA and TIG welding. The Miller MPi 220P combines portable size with synergic control, a large graphical display and support for steel, stainless steel and aluminium. Rated up to 200A with a 35% duty cycle at 180A for MIG, and supplied with 0.8/1.0mm V-groove drive rolls, work clamp and power cord.
Technical data
Technical specifications
| Maximum output | 200A |
|---|---|
| Current range | MIG 20-200A @ 230V; TIG 5-200A @ 230V; MMA 5-200A @ 230V |
| Dimensions (L × W × H) | 365 x 237 x 548mm |
| Frequency | 50/60 Hz |
| Included in box | 0.8/1.0mm V-groove drive roll kit for hard wire; Work clamp and power cord |
| Input phase | Single phase |
| Mig output range | 20-200A, 15-24V |
| Minimum order quantity | 1 |
| Open circuit voltage | MIG 35V; Stick 65V; TIG 65V |
| Protection class | IP22S |
| Rated output 100 mig | 110A at 17.5V |
| Rated output 100 stick | 100A at 24.0V |
| Rated output 100 tig | 100A at 14.0V |
| Rated output 35 mig | 180A at 23.0V |
| Rated output 60 mig | 140A at 21.0V |
| Stick output range | 5-200A, 20.2-28V |
| Suitable for | Steel, stainless steel and aluminium |
| Tig output range | 5-200A, 10-18V |
| Input voltage | 230V |
| Warranty | 3 years |
| Weight | 16kg |
| Welding processes | MIG / MAG, TIG, MMA / ARC |
| Welding process details | MIG (GMAW), Pulsed MIG (GMAW-P), Flux-cored (FCAW), Stick (SMAW), TIG (GTAW) |
