Jasic EVO TIG 200P DC Pulse PFC Welder | 110/240V
Jasic EVO TIG 200P DC Pulse PFC Welder | 110/240V

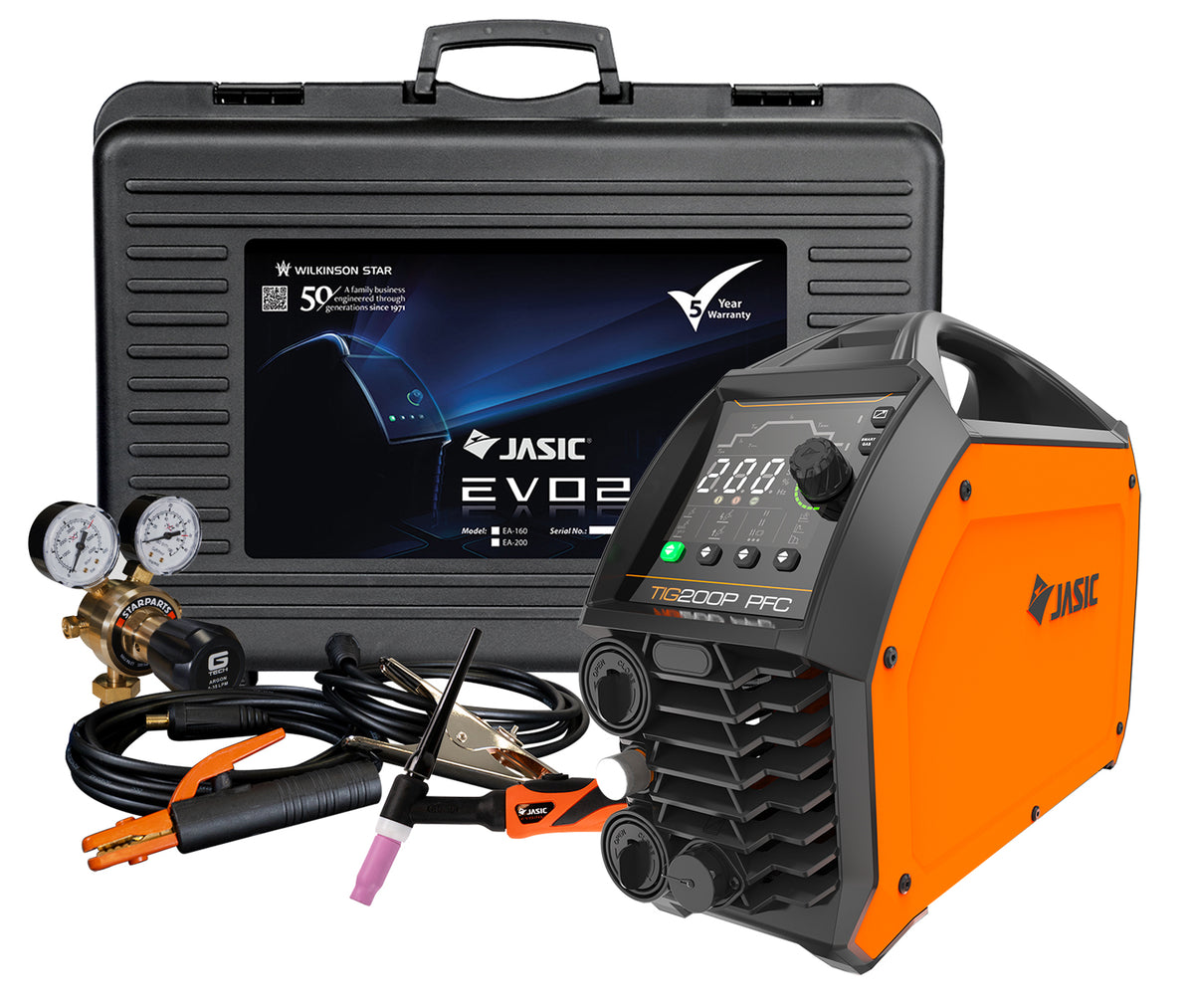

The Jasic EVO TIG 200P DC Pulse PFC Welder | 110/240V is a professional Jasic welding package for DC pulse TIG, MMA. ClearVision digital control, full DC pulse TIG parameters, Dash-Arc, Smart Lift TIG, Smart Gas and optional remote controls.
Key specifications:
- Input supply: AC 95-265V, 50/60Hz
- Maximum output: 200A
- Current range: TIG 5-160A @ 115V / 5-200A @ 230V; MMA 10-120A / 10-180A
- Duty cycle: 25% @ 40C
- Cooling: Air cooled
- Protection: IP23S
- Generator guidance: AVR generator: 5kVA @ 115V; 7kVA @ 230V
- Dimensions: 453 x 150 x 313mm
- Weight: 8.97kg
1–2 working day deliveryIn stock in our UK warehouse
Free UK delivery over £75 ex VATStandard mainland delivery terms apply
Straightforward returnsRead our returns policy
UK warranty supportHelp from our experienced team
Genuine means genuine
Original parts. Proper fit. No unbranded substitutes.
When a listing carries one of these manufacturer names, we supply the genuine branded product—not an unbranded lookalike or inferior copy. That gives professional welders confidence in compatibility, rated performance and product traceability.
Shop genuine MIG torches & parts- ABICOR BINZEL
- Miller
- Migatronic
- Bernard
- Tregaskiss
Trade-focused supplyProfessional equipment, parts and consumables.
Clear availabilityStock and expected lead times made clear.
Compatible accessories & useful extras
Continue browsing
Recently viewed
Essential specifications
Key facts at a glance
The principal information needed to compare this product quickly. Full technical data is shown below.
- Processes
- TIG, MMA / ARC
- Input voltage
- 110V / 230V
- Maximum output
- 200A
- Duty cycle
- 25% @ 40C
Product overview
Product information
The Jasic EVO TIG 200P DC Pulse PFC Welder | 110/240V is a professional Jasic welding package for DC pulse TIG, MMA. ClearVision digital control, full DC pulse TIG parameters, Dash-Arc, Smart Lift TIG, Smart Gas and optional remote controls.
Key specifications:
- Input supply: AC 95-265V, 50/60Hz
- Maximum output: 200A
- Current range: TIG 5-160A @ 115V / 5-200A @ 230V; MMA 10-120A / 10-180A
- Duty cycle: 25% @ 40C
- Cooling: Air cooled
- Protection: IP23S
- Generator guidance: AVR generator: 5kVA @ 115V; 7kVA @ 230V
- Dimensions: 453 x 150 x 313mm
- Weight: 8.97kg
The Jasic EVO TIG 200P DC Pulse PFC Welder | 110/240V is a professional Jasic welding package for DC pulse TIG, MMA. ClearVision digital control, full DC pulse TIG parameters, Dash-Arc, Smart Lift TIG, Smart Gas and optional remote controls.
Key specifications:
- Input supply: AC 95-265V, 50/60Hz
- Maximum output: 200A
- Current range: TIG 5-160A @ 115V / 5-200A @ 230V; MMA 10-120A / 10-180A
- Duty cycle: 25% @ 40C
- Cooling: Air cooled
- Protection: IP23S
- Generator guidance: AVR generator: 5kVA @ 115V; 7kVA @ 230V
- Dimensions: 453 x 150 x 313mm
- Weight: 8.97kg
Technical data
Technical specifications
| Maximum output | 200A |
|---|---|
| Arc ignition | Dash-Arc and Smart Lift TIG |
| Cooling type | Air cooled |
| Current range | TIG 5-160A @ 115V / 5-200A @ 230V; MMA 10-120A / 10-180A |
| Dimensions (L × W × H) | 453 x 150 x 313mm |
| Duty cycle | 25% @ 40C |
| Generator requirement | AVR generator: 5kVA @ 115V; 7kVA @ 230V |
| Input supply details | AC 95-265V, 50/60Hz |
| Manufacturer part number | ZXET-200P |
| Minimum order quantity | 1 |
| Model | EVO TIG 200P PFC |
| Power factor correction | Yes |
| Protection class | IP23S |
| Input voltage | 110V / 230V |
| Weight | 8.97kg |
| Welding processes | TIG, MMA / ARC |
| Welding process details | DC pulse TIG, MMA |
