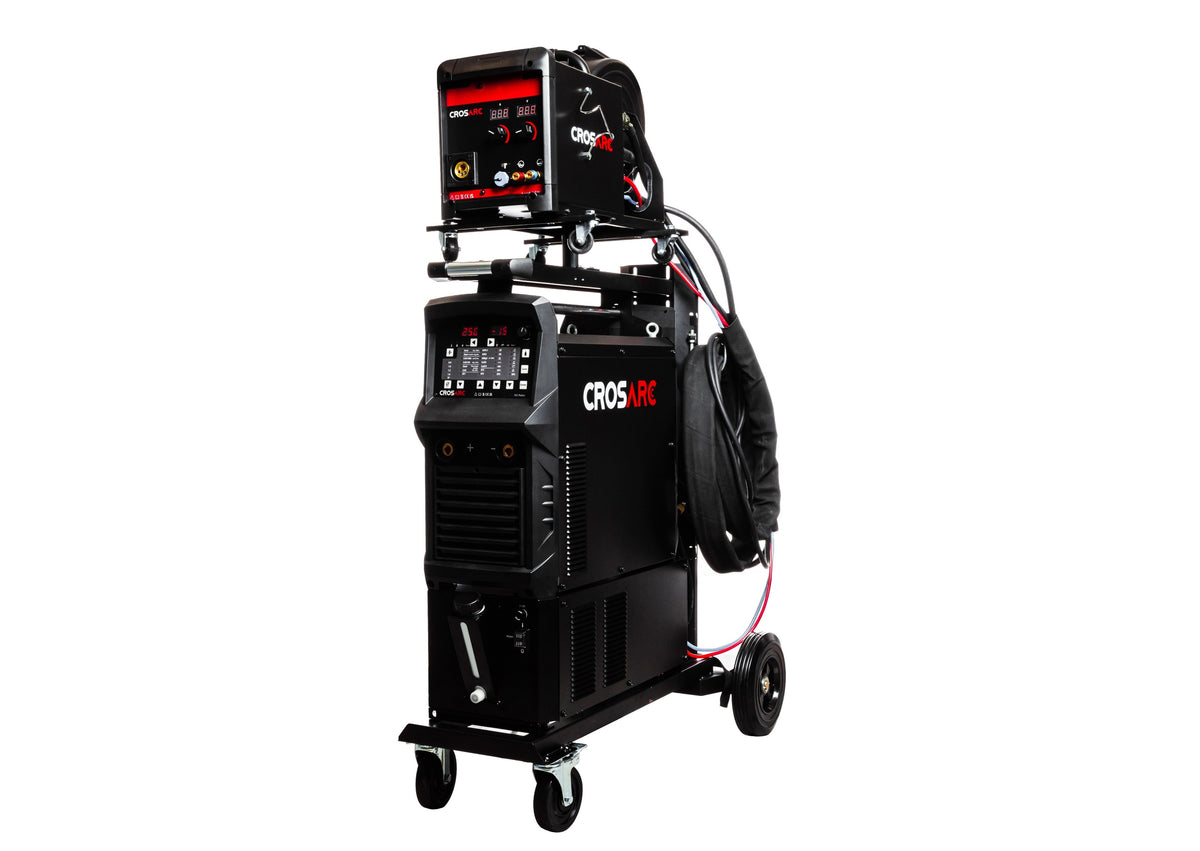

Crosarc X5 Pulse MIG Multi Process Water-Cooled Welder 400V
Crosarc X5 Pulse MIG Multi Process Water-Cooled Welder 400V
Industrial 400V multi-process welder with MIG/MAG, pulse MIG, double pulse, MMA and DC lift TIG functions. Water cooler included as standard, with 4-roll wire feed, synergic or manual control and 500A at 60% duty cycle.
3–5 working day deliveryAvailable to order
Free UK delivery over £75 ex VATStandard mainland delivery terms apply
Straightforward returnsRead our returns policy
UK warranty supportHelp from our experienced team
Genuine means genuine
Original parts. Proper fit. No unbranded substitutes.
When a listing carries one of these manufacturer names, we supply the genuine branded product—not an unbranded lookalike or inferior copy. That gives professional welders confidence in compatibility, rated performance and product traceability.
Shop genuine MIG torches & parts- ABICOR BINZEL
- Miller
- Migatronic
- Bernard
- Tregaskiss
Trade-focused supplyProfessional equipment, parts and consumables.
Clear availabilityStock and expected lead times made clear.
Compatible accessories & useful extras
Continue browsing
Recently viewed
Essential specifications
Key facts at a glance
The principal information needed to compare this product quickly. Full technical data is shown below.
- Processes
- MIG / MAG, TIG, MMA / ARC
- Input voltage
- 400/415V
- Maximum output
- 500A
- Duty cycle
- 500A at 60%
Product overview
Product information
Industrial 400V multi-process welder with MIG/MAG, pulse MIG, double pulse, MMA and DC lift TIG functions. Water cooler included as standard, with 4-roll wire feed, synergic or manual control and 500A at 60% duty cycle.
Industrial 400V multi-process welder with MIG/MAG, pulse MIG, double pulse, MMA and DC lift TIG functions. Water cooler included as standard, with 4-roll wire feed, synergic or manual control and 500A at 60% duty cycle.
Technical data
Technical specifications
| Maximum output | 500A |
|---|---|
| Brand | Crosarc |
| Certification | CE; UKCA |
| Conforms to | EN IEC 60974-1:2022 + A11:2022; EN IEC 60974-10:2021 |
| Cooling details | Fan cooled power source |
| Cooling type | Fan cooled |
| Current range | MIG: 30-500A; MMA: 20-500A; TIG: 20-500A |
| Dimensions (L × W × H) | 685 x 300 x 560mm |
| Display | Digital volt/amp display |
| Duty cycle | 500A at 60% |
| Earth lead included | Yes |
| Features | Burn back adjustment; wire inching; gas purge function; variable inductance; job save function; arc adjustment -9 soft to +9 hard |
| Frequency | 50/60Hz |
| Generator friendly | Yes |
| Included cart | Trolley mounted |
| Included cooler | Water cooler included |
| Included in box | Owner's manual; X5 pulse inverter power source; M5W-4 metre MIG welding torch; water cooler; gas hose; earth return lead and clamp |
| Input current | 24A |
| Input phase | 3-phase |
| Input supply details | 400V |
| Input tolerance | ±15% |
| Manufacturer part number | CAP0989 |
| Mig output range | 30-500A |
| Minimum order quantity | 1 |
| Mma output range | 20-500A |
| Model | X5 Pulse MIG Multi Process |
| Number of processes | 4 |
| Operation modes | Synergic or manual mode; single pulse; double pulse; 2T/4T |
| Product name | Crosarc X5 Pulse MIG Multi Process – Water Cooled |
| Product type | MIG Welder |
| Protection class | IP23/F |
| Rated output 60 mig | 500A at 60% duty cycle |
| Suitable for | Fe, aluminium, stainless steel and flux-cored wires |
| Synergic control | Yes |
| Tig output range | 20-500A |
| Torch length | 4m |
| Torch model | M5W-4 MIG welding torch |
| Trigger modes | 2T/4T |
| Input voltage | 400/415V |
| Warranty | 3 years |
| Weight | 53kg |
| Welding processes | MIG / MAG, TIG, MMA / ARC |
| Welding process details | MIG/MAG; MIG pulse; MMA; TIG DC lift |
| Wire diameter | 0.6, 0.8, 1.0, 1.2, 1.6mm |
| Wire drive | 4 roll |
| Wire feed speed | 0-24m/min |
