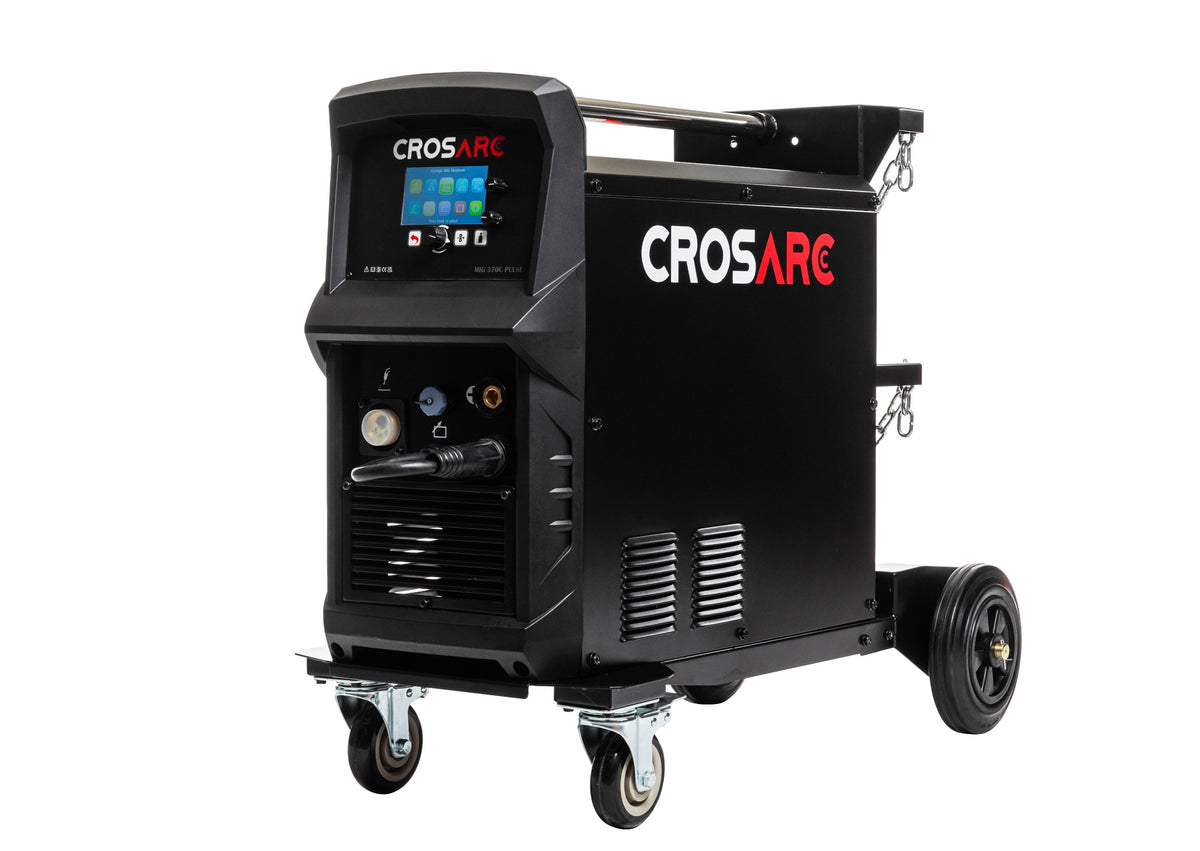

Crosarc Pulse MIG Multi Process 370C Water Cooled Welder 400V
Crosarc Pulse MIG Multi Process 370C Water Cooled Welder 400V
Three-phase water-cooled pulse MIG multi-process welder with 20-350A output, 350A at 60% duty cycle, 4-roll wire feed, colour interface and included water cooler.
3–5 working day deliveryAvailable to order
Free UK delivery over £75 ex VATStandard mainland delivery terms apply
Straightforward returnsRead our returns policy
UK warranty supportHelp from our experienced team
Genuine means genuine
Original parts. Proper fit. No unbranded substitutes.
When a listing carries one of these manufacturer names, we supply the genuine branded product—not an unbranded lookalike or inferior copy. That gives professional welders confidence in compatibility, rated performance and product traceability.
Shop genuine MIG torches & parts- ABICOR BINZEL
- Miller
- Migatronic
- Bernard
- Tregaskiss
Trade-focused supplyProfessional equipment, parts and consumables.
Clear availabilityStock and expected lead times made clear.
Compatible accessories & useful extras
Continue browsing
Recently viewed
Essential specifications
Key facts at a glance
The principal information needed to compare this product quickly. Full technical data is shown below.
- Processes
- MIG / MAG, TIG, MMA / ARC
- Input voltage
- 400/415V
- Maximum output
- 350A
Product overview
Product information
Three-phase water-cooled pulse MIG multi-process welder with 20-350A output, 350A at 60% duty cycle, 4-roll wire feed, colour interface and included water cooler.
Three-phase water-cooled pulse MIG multi-process welder with 20-350A output, 350A at 60% duty cycle, 4-roll wire feed, colour interface and included water cooler.
Technical data
Technical specifications
| Maximum output | 350A |
|---|---|
| Brand | Crosarc |
| Certification | CE / UKCA |
| Conforms to | EN IEC 60974-1:2022 + A11:2022; EN IEC 60974-10:2021; BS EN IEC 60974-1:2022 + A11:2022; BS EN IEC 60974-10:2021 |
| Cooling details | Fan cooled power source with water-cooled torch system |
| Cooling type | Water cooled |
| Current range | 20-350A |
| Dimensions (L × W × H) | 880 x 295 x 850mm |
| Display | High resolution colour user interface |
| Duty cycle mig | 350A @ 60% duty cycle at 40°C |
| Features | Single and double pulse settings, burn-back adjustment, wire inching, 2T/4T, gas purge function, variable inductance, job save function |
| Frequency | 50/60Hz |
| Included cart | Yes |
| Included cooler | Yes |
| Included return cable | Yes |
| Input current | 20A |
| Input phase | 3 phase |
| Input supply details | 400V |
| Input tolerance | ±15% |
| Manufacturer part number | CAP0984 |
| Minimum order quantity | 1 |
| Model | Pulse MIG Multi Process 370C |
| Number of processes | 5 |
| Optional accessory | TIG Kit 9 (CAP0990); MMA lead |
| Product type | MIG Welder |
| Protection class | IP21 |
| Stand features | Trolley mounted |
| Suitable for | Fe, aluminium, stainless steel and flux-cored wires |
| Synergic control | Yes |
| Torch length | 4m |
| Torch model | M5W-4 MIG welding torch |
| Input voltage | 400/415V |
| Warranty | 3 years |
| Weight | 72kg |
| Welding processes | MIG / MAG, TIG, MMA / ARC |
| Welding process details | MIG/MAG, MMA, MIG Pulse, TIG DC Lift, HD MIG/MAG |
| Wire diameter | 0.6, 0.8, 1.0 and 1.2mm |
| Wire drive | 4 roll |
| Wire feed speed | 0-16m/min |
