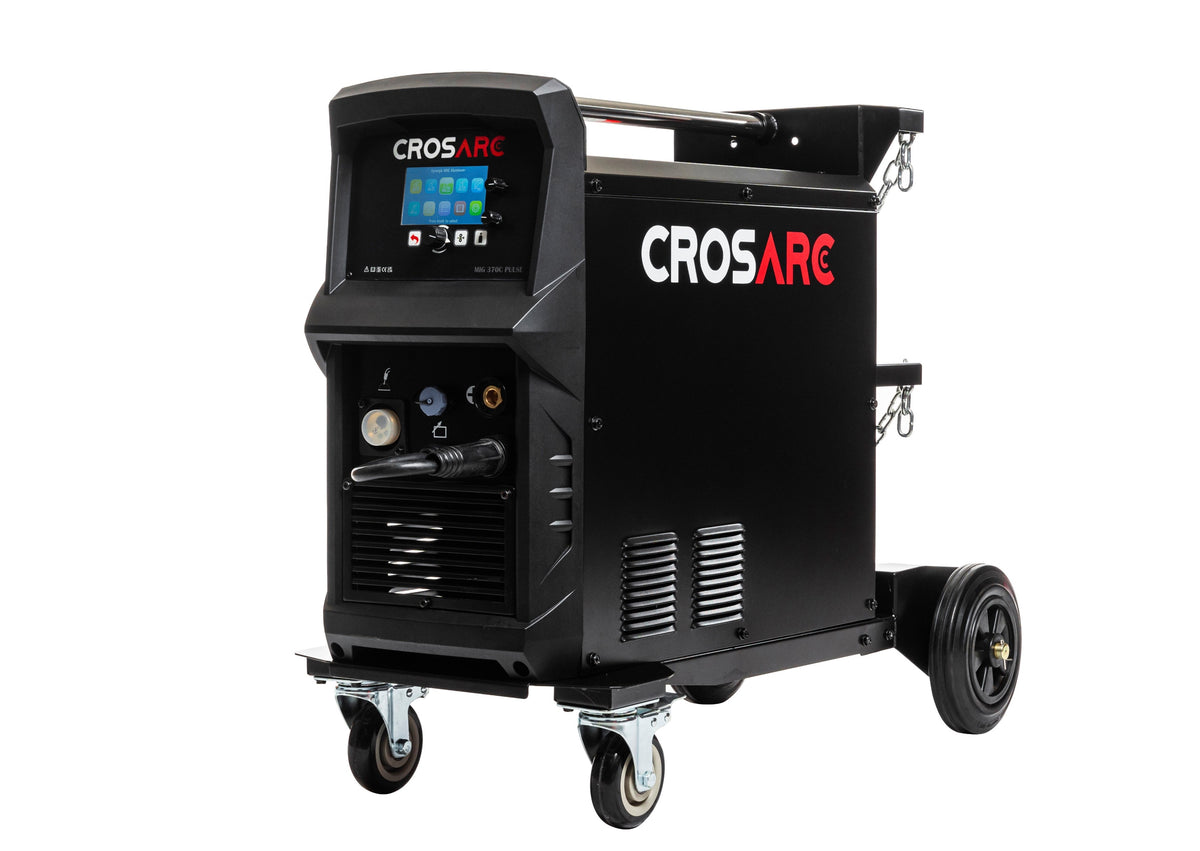

Crosarc Pulse MIG Multi Process 370C Air Cooled Welder 400V
Crosarc Pulse MIG Multi Process 370C Air Cooled Welder 400V
Three-phase multi-process inverter welder with MIG/MAG, pulse MIG, double pulse, MMA and DC lift TIG modes. Air-cooled trolley-mounted package with 4-roll wire feed, colour display and support for 0.6-1.2mm wire.
3–5 working day deliveryAvailable to order
Free UK delivery over £75 ex VATStandard mainland delivery terms apply
Straightforward returnsRead our returns policy
UK warranty supportHelp from our experienced team
Genuine means genuine
Original parts. Proper fit. No unbranded substitutes.
When a listing carries one of these manufacturer names, we supply the genuine branded product—not an unbranded lookalike or inferior copy. That gives professional welders confidence in compatibility, rated performance and product traceability.
Shop genuine MIG torches & parts- ABICOR BINZEL
- Miller
- Migatronic
- Bernard
- Tregaskiss
Trade-focused supplyProfessional equipment, parts and consumables.
Clear availabilityStock and expected lead times made clear.
Compatible accessories & useful extras
Continue browsing
Recently viewed
Essential specifications
Key facts at a glance
The principal information needed to compare this product quickly. Full technical data is shown below.
- Processes
- MIG / MAG, TIG, MMA / ARC
- Input voltage
- 400/415V
- Maximum output
- 350A
Product overview
Product information
Three-phase multi-process inverter welder with MIG/MAG, pulse MIG, double pulse, MMA and DC lift TIG modes. Air-cooled trolley-mounted package with 4-roll wire feed, colour display and support for 0.6-1.2mm wire.
Three-phase multi-process inverter welder with MIG/MAG, pulse MIG, double pulse, MMA and DC lift TIG modes. Air-cooled trolley-mounted package with 4-roll wire feed, colour display and support for 0.6-1.2mm wire.
Technical data
Technical specifications
| Maximum output | 350A |
|---|---|
| Brand | Crosarc |
| Conforms to | EN IEC 60974-1:2022 + A11:2022; EN IEC 60974-10:2021; BS EN IEC 60974-1:2022 + A11:2022; BS EN IEC 60974-10:2021 |
| Control type | Synergic or manual mode |
| Cooling details | Fan |
| Cooling type | Fan cooled |
| Current range | 20-350A |
| Dimensions (L × W × H) | 880 x 295 x 616mm |
| Display | High resolution colour user interface |
| Duty cycle mig | 350A @ 60% at 40°C |
| Features | Single/double pulse settings; burn back adjustment; wire inching; gas purge function; variable inductance; trolley mounted; easy set-up and operation |
| Frequency | 50/60Hz |
| Included cart | Yes |
| Included in box | Arc Torchology M4 4m MIG torch |
| Input current | 20A |
| Input phase | 3 phase |
| Input supply details | 3P~400V (+/-15%) |
| Input tolerance | ±15% |
| Manufacturer part number | CAP0974 |
| Memory function | Job save function |
| Minimum order quantity | 1 |
| Model | Pulse MIG Multi Process 370C |
| Number of processes | 5 |
| Product name | Crosarc Pulse MIG Multi Process 370C – Air Cooled |
| Product type | MIG Welder |
| Protection class | IP21/S |
| Rated output 60 mig | 350A |
| Tig start | Lift start |
| Torch length | 4m |
| Torch model | Arc Torchology M4 |
| Trigger modes | 2T/4T |
| Input voltage | 400/415V |
| Warranty | 3-year parts and labour warranty |
| Water cooled option | Yes |
| Weight | 52kg |
| Welding processes | MIG / MAG, TIG, MMA / ARC |
| Welding process details | MIG/MAG, MMA, MIG Pulse, TIG DC Lift, HD MIG/MAG |
| Wire diameter | 0.6mm, 0.8mm, 1.0mm, 1.2mm |
| Wire drive | 4 roll wire feed system |
| Wire feed speed | 0-16m/min |
