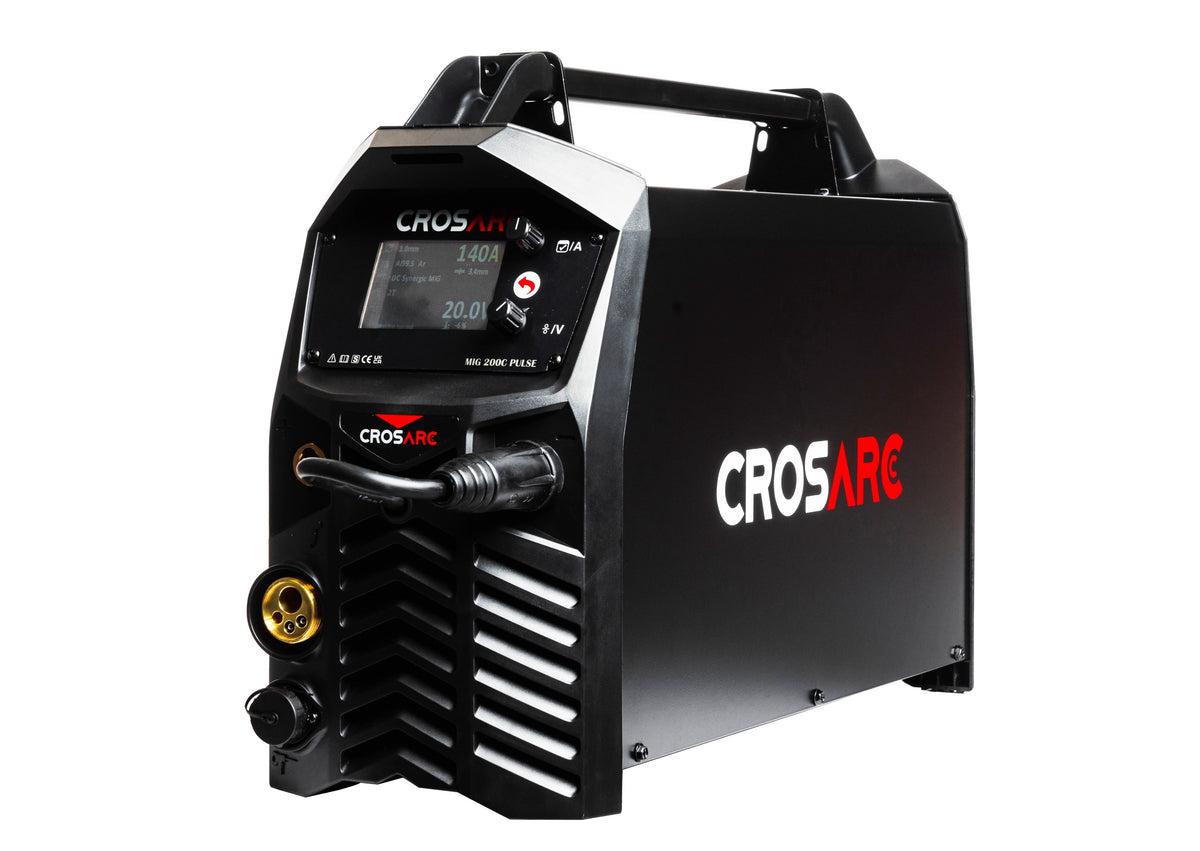

Crosarc Pulse MIG Multi Process 200C Welder 110/230V
Crosarc Pulse MIG Multi Process 200C Welder 110/230V
Portable dual-voltage pulse MIG multi-process inverter welder for MIG/MAG, pulse MIG, MMA and DC lift TIG welding. Features a high-resolution colour interface, 4-roll wire feed, synergic or manual control, and support for 0.6, 0.8 and 1.0mm wire.
3–5 working day deliveryAvailable to order
Free UK delivery over £75 ex VATStandard mainland delivery terms apply
Straightforward returnsRead our returns policy
UK warranty supportHelp from our experienced team
Genuine means genuine
Original parts. Proper fit. No unbranded substitutes.
When a listing carries one of these manufacturer names, we supply the genuine branded product—not an unbranded lookalike or inferior copy. That gives professional welders confidence in compatibility, rated performance and product traceability.
Shop genuine MIG torches & parts- ABICOR BINZEL
- Miller
- Migatronic
- Bernard
- Tregaskiss
Trade-focused supplyProfessional equipment, parts and consumables.
Clear availabilityStock and expected lead times made clear.
Compatible accessories & useful extras
Continue browsing
Recently viewed
Essential specifications
Key facts at a glance
The principal information needed to compare this product quickly. Full technical data is shown below.
- Processes
- MIG / MAG, TIG, MMA / ARC
- Input voltage
- 110V / 230V
- Maximum output
- 200A
- Duty cycle
- 200A @ 25% duty cycle at 40°C
Product overview
Product information
Portable dual-voltage pulse MIG multi-process inverter welder for MIG/MAG, pulse MIG, MMA and DC lift TIG welding. Features a high-resolution colour interface, 4-roll wire feed, synergic or manual control, and support for 0.6, 0.8 and 1.0mm wire.
Portable dual-voltage pulse MIG multi-process inverter welder for MIG/MAG, pulse MIG, MMA and DC lift TIG welding. Features a high-resolution colour interface, 4-roll wire feed, synergic or manual control, and support for 0.6, 0.8 and 1.0mm wire.
Technical data
Technical specifications
| Maximum output | 200A |
|---|---|
| Brand | Crosarc |
| Conforms to | EN IEC 60974-1:2022 + A11:2022; EN IEC 60974-10:2021; BS EN IEC 60974-1:2022 + A11:2022; BS EN IEC 60974-10:2021 |
| Cooling details | Fan |
| Cooling type | Fan cooled |
| Current range | MIG 20-100A @ 110V; MIG 20-200A @ 230V; TIG 10-85A @ 110V; TIG 10-200A @ 230V; MMA 10-85A @ 110V; MMA 10-170A @ 230V |
| Dimensions (L × W × H) | 550 x 195 x 375mm |
| Display | High-resolution colour user interface |
| Duty cycle | 200A @ 25% duty cycle at 40°C |
| Earth lead included | Yes |
| Frequency | 50/60Hz |
| Gas compatibility | Gas-shielded MIG/MAG and flux-cored wire |
| Generator friendly | Yes |
| Included in box | 200C pulse inverter power source, M2 3m MIG welding torch, earth return lead and clamp, gas hose |
| Included return cable | Yes |
| Input current | 110V: 32A; 230V: 16A |
| Input phase | 1 phase |
| Input supply details | 110/230V |
| Input tolerance | +/-15% |
| Manufacturer part number | CAP0981 |
| Mig output range | 110V: 20-100A; 230V: 20-200A |
| Minimum order quantity | 1 |
| Mma output range | 110V: 10-85A; 230V: 10-170A |
| Model | Pulse MIG Multi Process 200C |
| Number of processes | 4 |
| Product name | Crosarc Pulse MIG Multi Process 200C |
| Product type | MIG Welders |
| Protection class | IP23/F |
| Suitable for | Fe, aluminium, stainless steel and flux-cored wires |
| Synergic control | Yes |
| Tig output range | 110V: 10-85A; 230V: 10-200A |
| Tig start | Lift |
| Torch length | 3m |
| Torch model | M2 |
| Trigger modes | 2T/4T |
| Input voltage | 110V / 230V |
| Warranty | 3-year parts and labour warranty |
| Weight | 13kg |
| Welding processes | MIG / MAG, TIG, MMA / ARC |
| Welding process details | MIG/MAG, MIG Pulse, MMA, TIG DC Lift |
| Wire diameter | 0.6mm, 0.8mm, 1.0mm |
| Wire drive | 4 roll wire feed system |
| Wire feed speed | 1.5-16m/min |
| Wire spool size | 0.7kg or 5kg reels |
