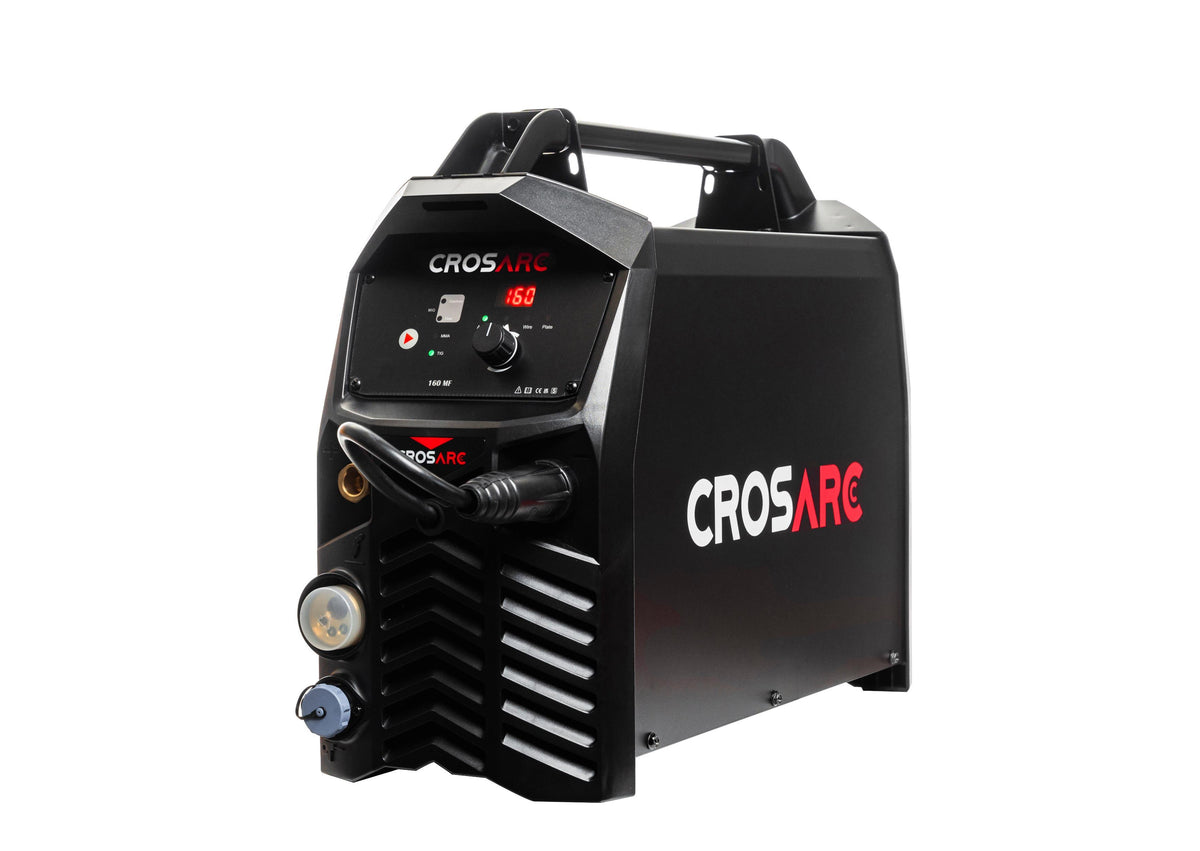

CrosArc MIG Multi-Function 160MF Welder 230V
CrosArc MIG Multi-Function 160MF Welder 230V
Compact 230V multi-process inverter welder for MIG/MAG, MMA and DC lift TIG welding. The CrosArc 160MF features a digital volt/amp display, 2-roll wire feed, 20-160A MIG output and includes a 3m MIG torch, earth return lead and gas hose.
3–5 working day deliveryAvailable to order
Free UK delivery over £75 ex VATStandard mainland delivery terms apply
Straightforward returnsRead our returns policy
UK warranty supportHelp from our experienced team
Genuine means genuine
Original parts. Proper fit. No unbranded substitutes.
When a listing carries one of these manufacturer names, we supply the genuine branded product—not an unbranded lookalike or inferior copy. That gives professional welders confidence in compatibility, rated performance and product traceability.
Shop genuine MIG torches & parts- ABICOR BINZEL
- Miller
- Migatronic
- Bernard
- Tregaskiss
Trade-focused supplyProfessional equipment, parts and consumables.
Clear availabilityStock and expected lead times made clear.
Compatible accessories & useful extras
Continue browsing
Recently viewed
Essential specifications
Key facts at a glance
The principal information needed to compare this product quickly. Full technical data is shown below.
- Processes
- MIG / MAG, TIG, MMA / ARC
- Input voltage
- 230V
- Maximum output
- 160A
- Duty cycle
- 160A @ 30% at 40°C
Product overview
Product information
Compact 230V multi-process inverter welder for MIG/MAG, MMA and DC lift TIG welding. The CrosArc 160MF features a digital volt/amp display, 2-roll wire feed, 20-160A MIG output and includes a 3m MIG torch, earth return lead and gas hose.
Compact 230V multi-process inverter welder for MIG/MAG, MMA and DC lift TIG welding. The CrosArc 160MF features a digital volt/amp display, 2-roll wire feed, 20-160A MIG output and includes a 3m MIG torch, earth return lead and gas hose.
Technical data
Technical specifications
| Maximum output | 160A |
|---|---|
| Brand | CrosArc |
| Certification | CE; UKCA |
| Conforms to | EN IEC 60974-1:2022 + A11:2022; EN IEC 60974-10:2021; BS EN IEC 60974-1:2022 + A11:2022; BS EN IEC 60974-10:2021 |
| Cooling details | Integrated fan |
| Cooling type | Fan cooled |
| Current range | MIG 20-160A @ 230V; TIG 10-160A @ 230V; MMA 10-140A @ 230V |
| Dimensions (L × W × H) | 550 x 195 x 375mm |
| Display | Digital volt/amp display |
| Duty cycle | 160A @ 30% at 40°C |
| Earth lead included | Yes |
| Frequency | 50/60Hz |
| Generator friendly | Yes |
| Included in box | Owner's manual; 160MF inverter power source; M1-3 3m MIG welding torch; earth return lead and clamp; gas hose |
| Input current | 16A |
| Input phase | 1 phase |
| Input tolerance | ±15% |
| Manufacturer part number | CAP0936 |
| Max electrode size | 3.2mm |
| Mig output range | 20-160A |
| Minimum order quantity | 1 |
| Mma output range | 10-140A |
| Model | MIG Multi-Function 160MF |
| Number of processes | 3 |
| Optional accessory | TIG Kit 7 (CAP0947); MMA Lead; Inverter Trolley (CAP0216) |
| Product name | CrosArc MIG Multi-Function 160MF |
| Product type | MIG Welder |
| Protection class | IP21/F |
| Tig output range | 10-160A |
| Torch length | 3m |
| Input voltage | 230V |
| Warranty | 3 Years |
| Weight | 7.5kg |
| Welding processes | MIG / MAG, TIG, MMA / ARC |
| Welding process details | MIG/MAG; MMA; TIG DC lift |
| Wire diameter | 0.6mm; 0.8mm |
| Wire drive | 2-roll wire feed system |
| Wire feed speed | 4-15m/min |
| Wire spool size | 0.7kg or 5kg reels |
